Standard TDS  9.5HC

TDS-9.5HC
133110651332887
134093890793605

  • Heavy duty series wound motor delivers superior torque output and faster line speed.

  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.

  • Automatic,double cone brake.

  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.

  • Installation ,operation and maintenance with ease.

Product Detail​

Specification

Specification
TDS 9.5HC
Line Pull
4,309kgs/9,500lbs
Motor
12V/5.2HP 24V/3.2HP
Gear Train
Three stage
Gear Ratio
156:1
Freespooling Clutch
Rotating ring gear
Drum Size
Φ2.5"×9"(Φ63.5mm×229mm)
Wire Rope Size
Φ11/32"×100'(Φ8.7mm×30m)
Wire Rope Type
Aircraft A7×19
Synthetic Rope Size
Φ11/31"×100'(Φ9.0mm×30m)

Line Pull​

Layer of Rope
TDS 9.5
1
9,500lbs/4,309kgs
2
7,800lbs/3,500kgs
3
6,550lbs/2,977kgs
4
5,700lbs/2,578kgs

Line Speed and AMP Draw (1st layer of rope on the drum)

Load
Line Speed
AMP Draw(12V)
AMP Draw(24V)
No Load
59FPM/18MPM
60
40
2,000lbs/907kgs
15.4FPM/4.7MPM
150
116
4,000lbs/1,814kgs
13.1FPM/4.0MPM
187
168
6,000lbs/2,722kgs
11.2FPM/3.4MPM
246
220
8,000lbs/3,650kgs
9.5FPM/2.9MPM
314
260
9,500lbs/4,309kgs
8.2FPM/2.5MPM
370
300

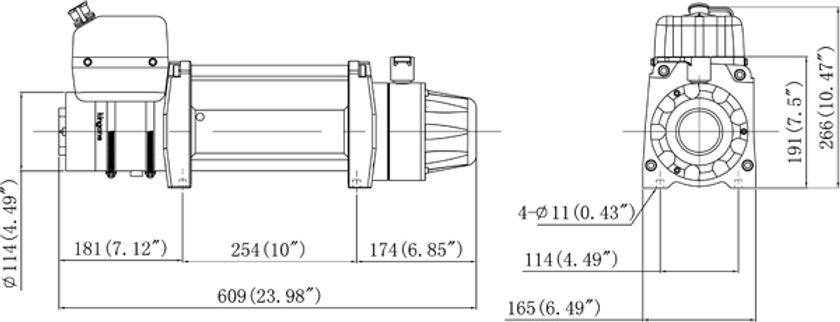

Dimensions (mm)

Standard Accessories

  • Controller                                TA-0906

  • Wire Rope With Hook

  • 4 Way Roller Fairlead                       TA-0903

  • Control Unit                            TA-0910/12V     TA-0910/24V

  • Mounting Hardware

  • Handsaver Strap

Packaging​

Package
TDS 9.5HC
Winch Weight
43kgs/94.6lbs
Gross Weight
45kgs/99lbs
Box Dimension
647×198×410 mm(25.5"×7.8"×16.1")
